User-friendly interface
Body temperature monitoring system
Product Name: Body Temperature Monitoring System
Product model: ANW 319
Manufacturer brand: Anwork

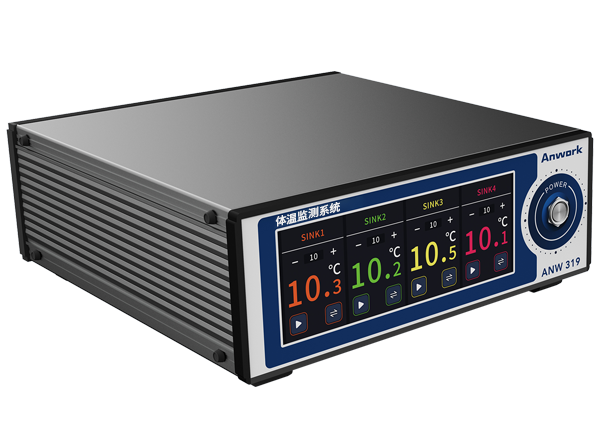

The ANW 319 body temperature monitoring system is a compact, high-precision, and high-resolution skin temperature detection device composed of analysis software, temperature acquisition module, and refrigeration module. This device has interface functionality, making it easy to use and integrate.
The ANW319 device is mainly used to measure the skin temperature of fingers after cold stimulation, which can effectively evaluate the recovery of finger skin temperature and indicate related diseases caused by finger vascular dysfunction.
Body temperature monitoring systems are widely used in medical, industrial, research, and educational institutions around the world.

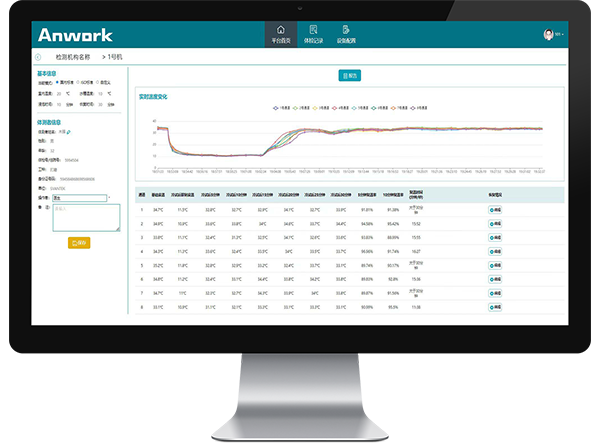

ANW319 is equipped with a Chinese version of PC software, with an intuitive interface design, easy to understand operation, built-in multiple detection standards and custom functions, custom configuration channels, real-time display of temperature curves and rewarming data, and automatic generation of reports (including test conditions, test results, test analysis, curve graphs, and subject information). The interface can simultaneously display the measurement curves of four machines, supporting customized curve display. The easy-to-use and excellent operation interface is convenient for users to view and operate.
Functional Characteristics
|
|
Combined Configuration
|
Technical Specifications
| Body temperature monitoring system | |
| Thoroughfare | 8 channels (can be expanded to up to 32 channels) |
| Skin temperature sensor | T-type thermocouple |
| Water temperature sensor | NTC |
| Accuracy | ± 0.5 ℃ |
| Resolving power | 0.1 ℃ |
| Sampling rate | 1 sampling point per second per channel |
| Communication method | USB |
| Screen type | Colorful touch screen |
| Input voltage | 220VAC |
| Voltage frequency | 50Hz |
| Overall dimensions | 340x383x150mm |

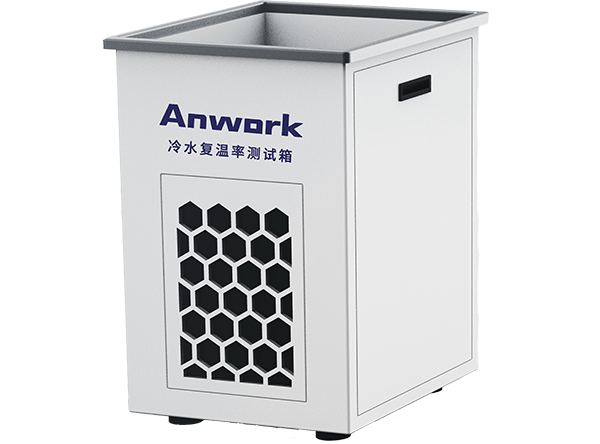

| Cold water rewarming rate test box (optional) | |
| Temperature range | 5 ~ 80 ℃ |
| Temperature stability | ± 0.1 ℃ |
| Temperature uniformity | ± 0.2 ℃ |
| Temperature control method | Intelligent PID |
| Heating power | 750 W |
| Refrigeration capacity | 750 W |
| Cooling time (10 ℃) | 30 min |
| Loop mode | Internal circulation |
| Pump flow rate | 22 L/min |
| Test box volume | 30 L |
| Overall dimensions | 470 × 470 × 690 mm |
