中文SVLab 219
Lightweight and stable high-power sound source
Directional sound source
Product Name: Directional Sound Source
Product model: SVLab 219
Manufacturer brand: SVLab

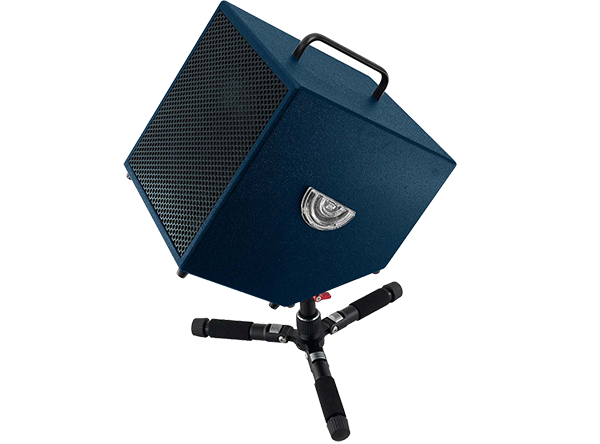

SVLab 219 is a directional sound source that adopts a portable design for easy measurement. It is suitable for generating sound in a free field and is used to evaluate the sound insulation performance of exterior walls. Due to its excellent directional performance and power, it is also suitable for measuring acoustic sound insulation and reverberation time. The combination of SVLab219 directional sound source and SVLab233 power amplifier allows for flexible gain adjustment according to requirements.
The shell of SVLab219 is made of solid wood, which is sturdy and provides effective protection.
Functional Characteristics
|
|  |
|
|
Technical Specifications
| Standards | ISO 140-5，ISO 16283-3，ISO 3382，ISO 354 |
| Rated power | 250 W |
| Maximum sound power level | 117 dB |
| Rated impedance | 8 Ω |
| Size | 255 × 255 × 255 |
| Input interface | Speakon |
| Attachment | Standard configuration: Audio cable × 1. Support tripod × 1. Portable case × 1 |
Our company's policy is to continuously innovate and develop our products.
Therefore, we reserve the right to change product specifications without prior notice.
